Flexibly Move Omni Directional Tunnel Lifting AGV Magnetic Tape Guiding For Food Industry

Name: Flexibly Move Omni Directional Tunnel Lifting AGV Magnetic Tape Guiding For Food Industry
Brand: CASUN
Price: 1 USD

Quality Flexibly Move Omni Directional Tunnel Lifting AGV Magnetic Tape Guiding For Food Industry for sale

Brand Name : CASUN

Model Number : BFJ1500V2

Place of Origin : China, Shenzhen

MOQ : 1 unit

Price : USD

Supply Ability : 200 units / month

Delivery Time : 35 days

Packaging Details : Wooden case

Model : BFJ1500V2

Dimensions : L1500*W800*H765(mm)

Load capacity : 500-1200kg, Customizable

Travel speed : 0-45m/min

Travel Direction : 360° driving

Type : Tunnel Lift

Drive : Steering Drive

Industry : Food Industry and Hospital

Used for : Cold Chain -3°

Contact Now

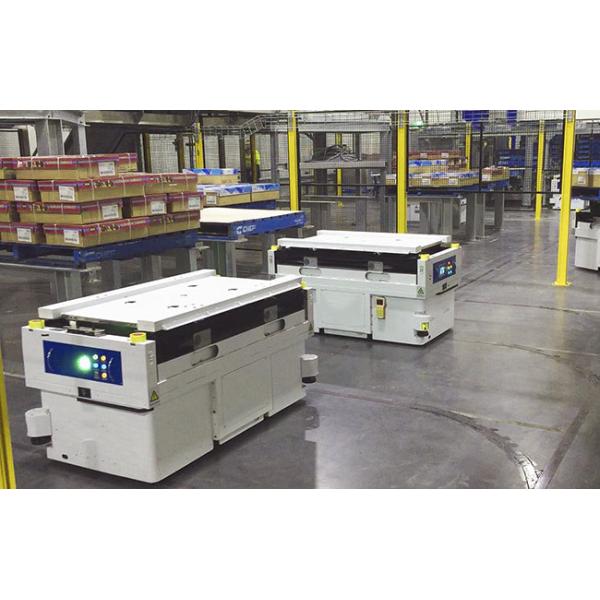

Tunnel Lift AGV with Magnetic Tape Steering Drive Omni Directional for Food Intralogistics Solution

1. Product Description:

Tunnel Lift AGV, which could be used for food indusry with the temperature -3 degree.

The AGV equipped with lifting function ,material can be lifted to the set height and transported to the support plate with limited small space.

In a narrow space environment, the normal AGV can not complete the docking work, but its 360-degree rotation function can meet the requirements of setting different angles running on site, and effectively utilize the on-site space. Mainly suitable for environment with small space and heavy lifting required.

2. Application:

This type of AGV suits for food industry, especially for cold chain warehouse, and medical industry.

3. Specifications:

Product name	Tunnel Lift AGV with Magnetic Tape Steering Drive Omni Directional for Food Intralogistics Solution
Model	BFJ1500V2
Dimensions	L1500W800H765(mm)
Load capacity	500-1200kg or custom
Minimum turning radius	0, Omni-directional driving
Guidance	Magnetic guidance
Travel Direction	360°Omni-directional driving
Travel speed	0-45m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	RF / Wifi
Driving mode	Differential driving
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Lifting platform
Charging method	Manual charging / automatic charging
Battery	Lead acid battery / lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Front obstacle sensor+mechanical bumper sensor
Safety induction range	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm

4. Advantages:

Omni directional lifting
Automatic scanning barcode when AGV rotate 360 degree
Able to work in a narrow space
